Schubert & Salzer Control Systems GmbH

Schubert & Salzer Control Systems manufactures and sells control and on/off valves for industrial applications. Our sliding gate valves and on/off valves in nominal sizes DN 8 to DN 250, suitable for a nominal pressure of max. PN320 meet the highest requirements in terms of precision, leak-tightness and reliability, in a variety of applicati- ons for technical gases, especially hydrogen.

Sliding gate valves for hydrogen applications

Sliding gate valves are permanently technically leakproof according to TRGS 500 and also awarded a DVGW certi- ficate in accordance with DIN 16678. The sliding gate valves in the GS3 series are particularly preferred for applica- tions with hydrogen.

The advantages of sliding gate valves:

  • Low actuation forces, compact design, low weight
  • High degree of tightness, low leakage due to the functional principle
  • Long service life, minimal wear, low operating costs, including reduced wear on safety critical bellow seals
  • Precise control with high dynamics
  • High cycle performance with very short cycle times
  • High KVS values, easily exchangeable
  • Low noise emission and no cavitation sensitivity
  • Simple design, easy to install and maintain
  • Reduced energy consumption and low insulation losses

 Seat valves for hydrogen applications

Seat valves are suitable for hydrogen applications in accordance with category I of the PED (DN*PN < 1000). The stainless steel valves are specially checked for external leak tightness for use with hydrogen.

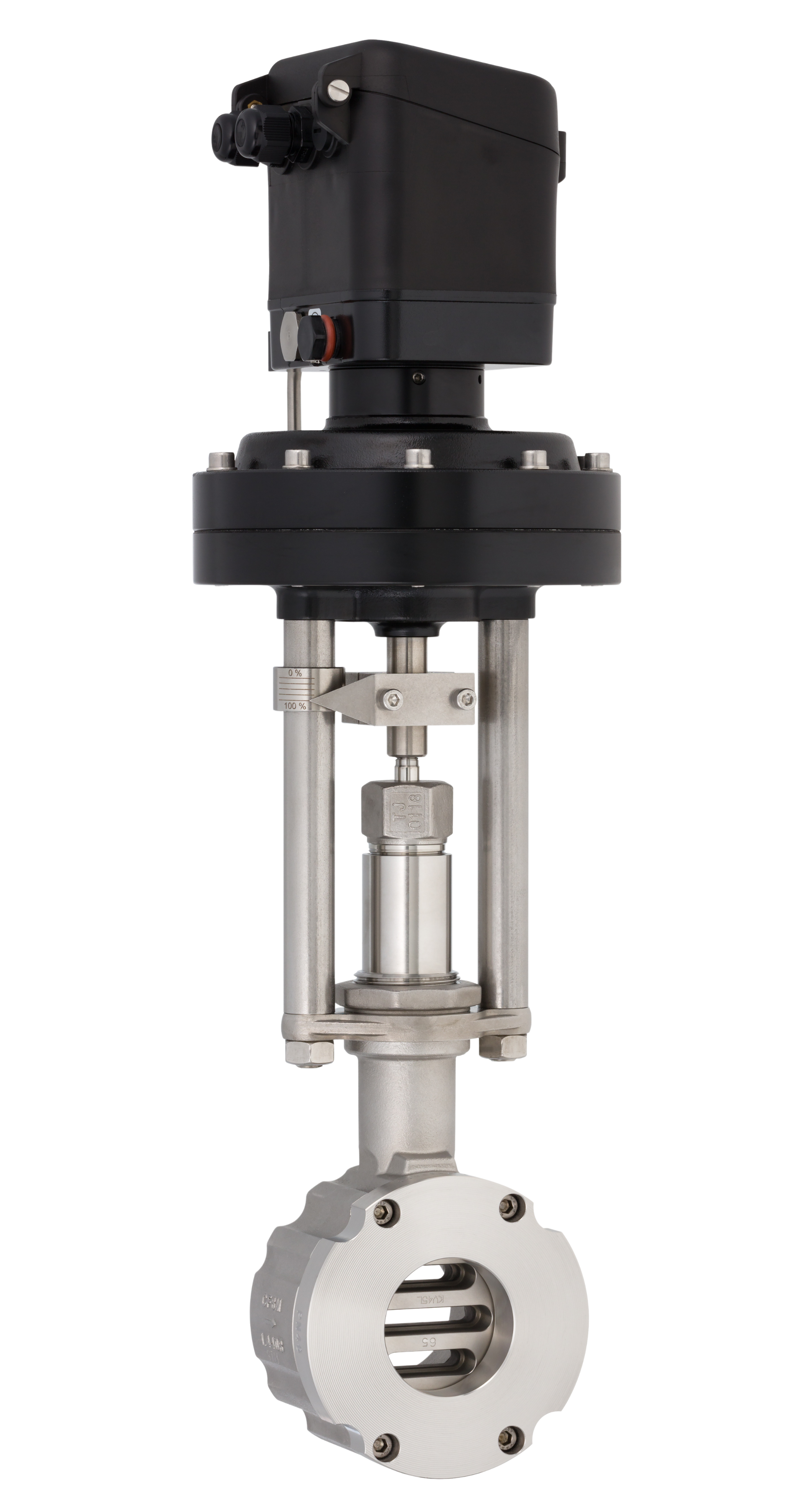

Leverantorer Schubert_Salzer sliding_gate_valve_type_7042

Sliding gate valve Type 8021

Fluid temperature: -60 to + 350 °C

Body leakage: 5 x 10-6mbar*l/s (Helium)

Measured with helium sniff test according to ISO 15848-2 at 6 bar

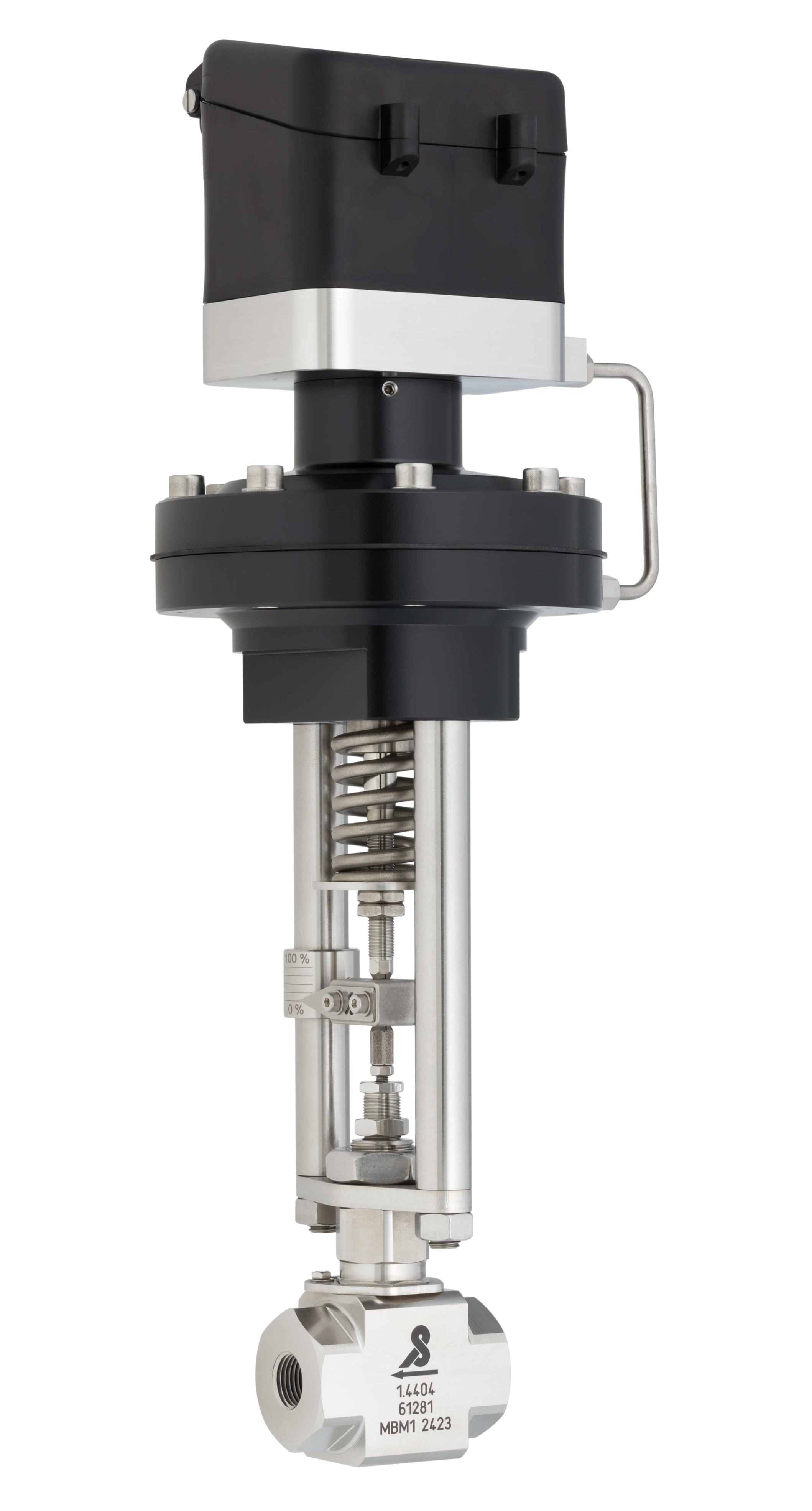

Leverantorer Schubert_Salzer low_flow_valve_type_7042

Low flow valve Type 7042

Fluid temperature: -60 to + 530 °C

Pressure: PN320

Suitable for high-pressure applications with H2

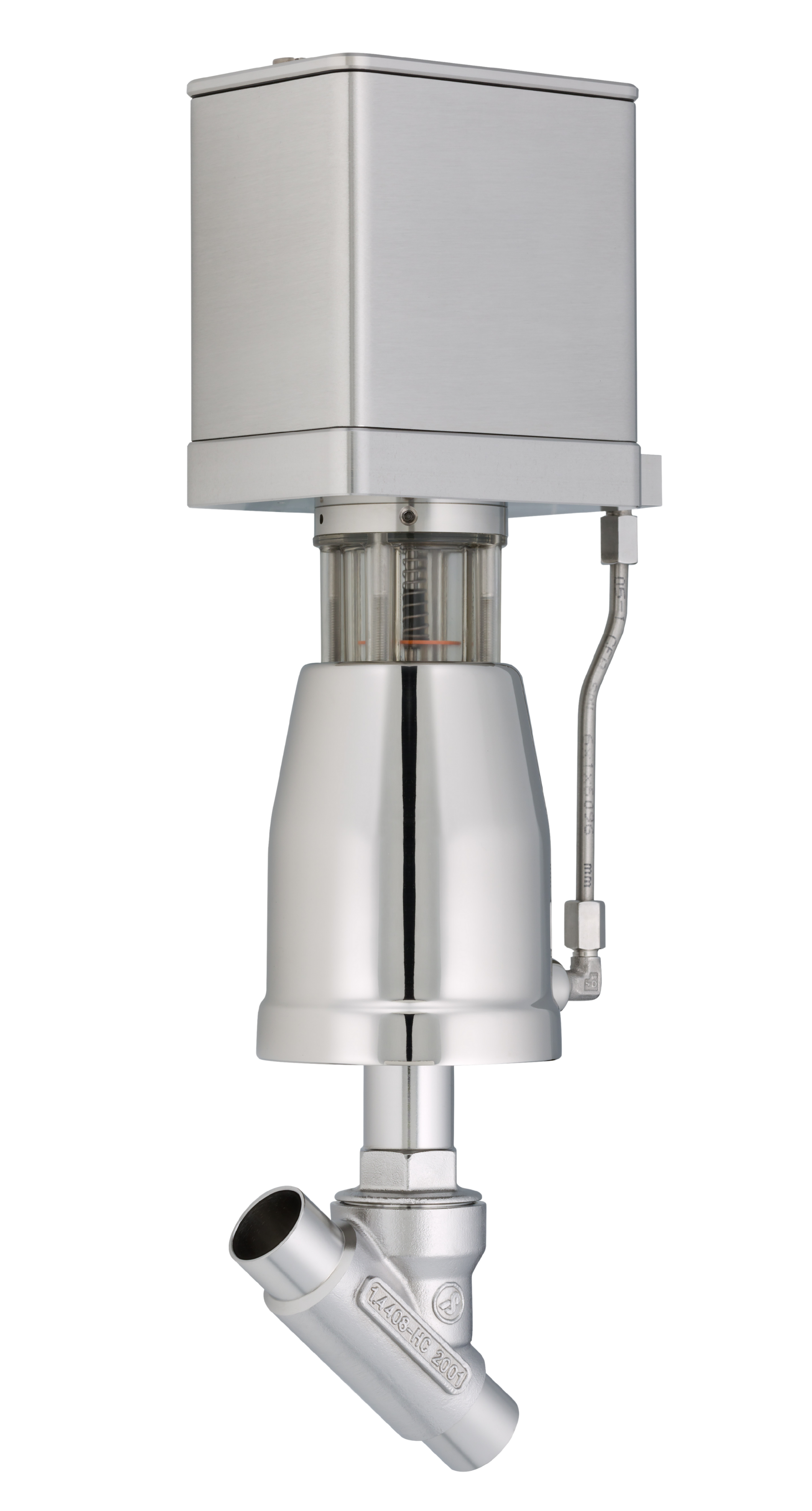

Leverantorer Schubert_Salzer control_valve_type_7025

Control valve Type 7025

Fluid temperature: -30°C to +140°C

With certification of the leakage rate according to TA-Luft pursuant to DIN EN ISO 15848-1

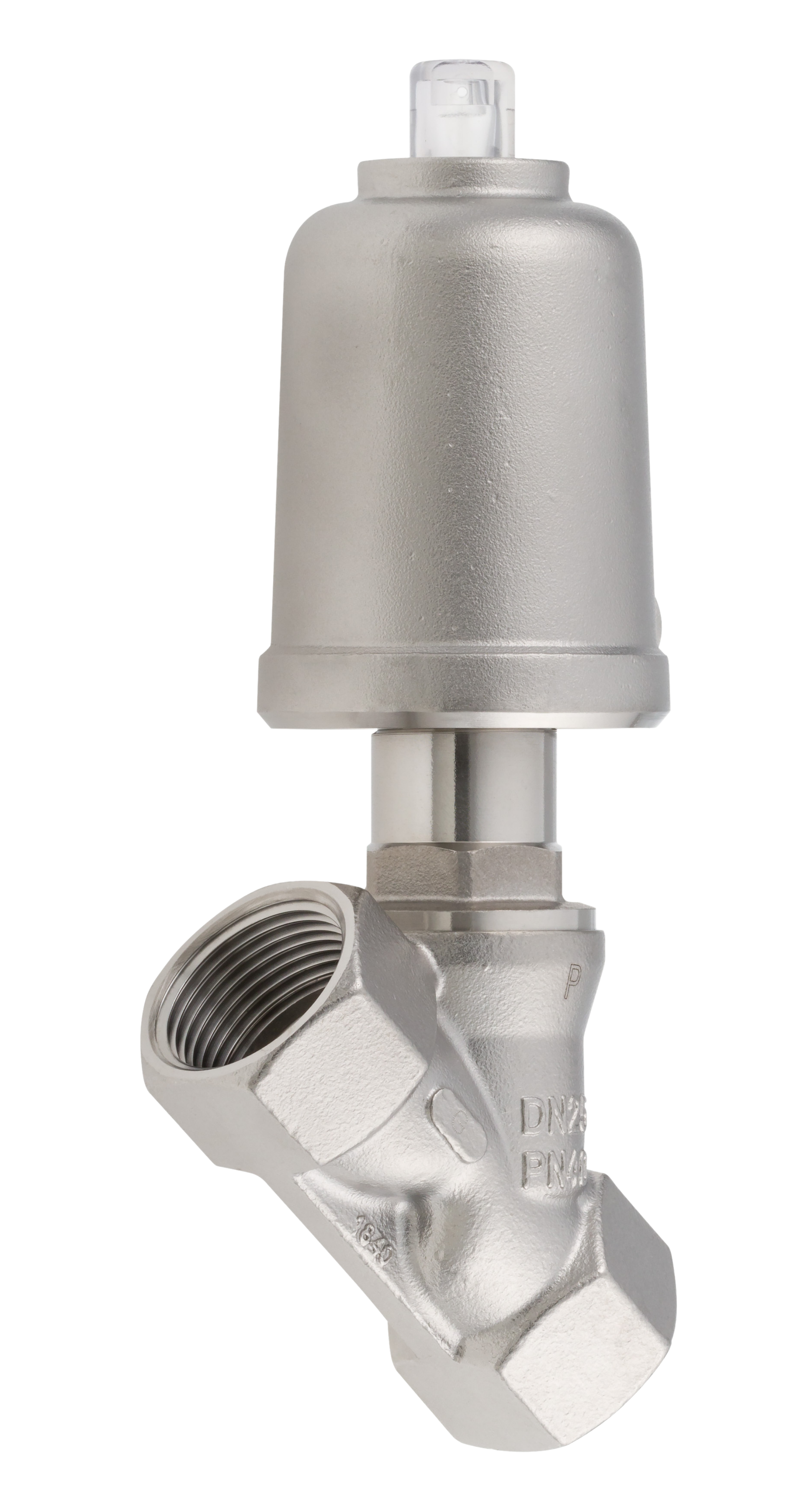

Leverantorer Schubert_Salzer angle_seat_valve_type_7010,7015

Angle seat valve Type 7010/7015

Fluid temperature: -30°C to +170°C

With DVGW certificate DIN EN 161

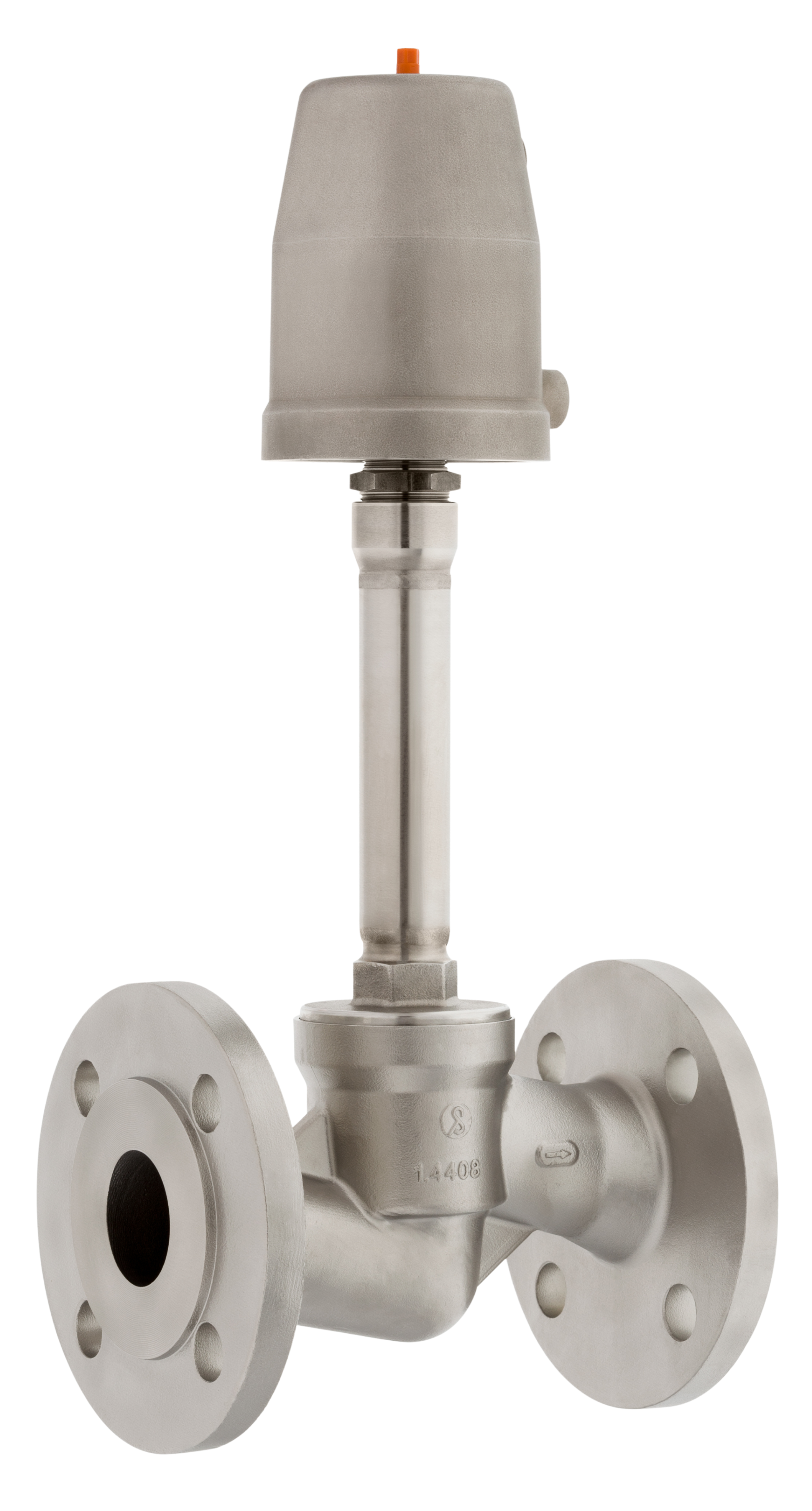

Leverantorer Schubert_Salzer flange_valve_type_7032

Flange valve Type 7032

Fluid temperature: -30°C bis +200°C

Welded pipe connection, with flange joint accor- ding to DIN EN 1092-1
